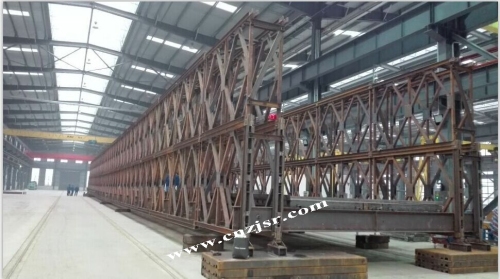

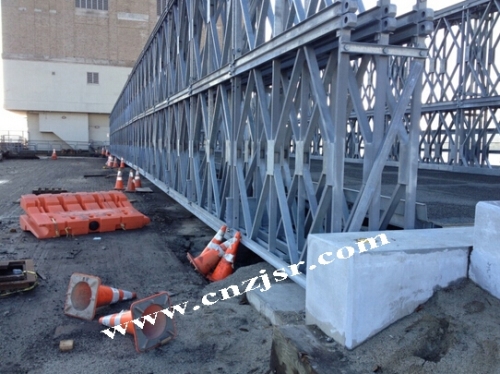

American Standard Bailey Bridge
Material
1 truss, reinforced chord material using ASTM A572 GR65, yield strength 65ksi (450Mpa).
2 beams, bridge panels and other components of the material using ASTM A572 GR50, yield strength 50ksi (345Mpa) bridge deck on the surface pavement anti-ski
1 truss, reinforced chord material using ASTM A572 GR65, yield strength 65ksi (450Mpa).
2 beams, bridge panels and other components of the material using ASTM A572 GR50, yield strength 50ksi (345Mpa) bridge deck on the surface pavement anti-ski
Description
Single lane
Double lane
Multi-span
Introduction:
- fully inspected and load tested
- fabricated in a factory certified to AISC Simple Bridge and ISO9001 standards
- made of steel construction and are hot-dipped zinc galvanized to minimize weathering
- economical whether permanently or temporarily installed
- quick and easy to erect with minimal labor
- adaptable and versatile
- constructed of modular components that are durable, and 100% reusable
- usually delivered from stock
- either lifted or rolled into place
- available for rental, purchase, or lease/purchase
Single lane ,width 4.2m




Double lane : 7.35m, TDR3H








Multi-span
