Hand push thermoplastic road marking machine

Item No.: SRD860
It is equipped with plain cast iron marking shoe and micro glass beads automatic broadcaster,it has advantages of simple structure,light,high performance and reasonable price etc.
INQUIRY
Description
Specification Photo

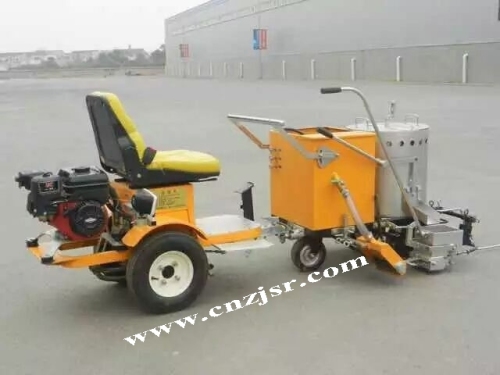

SRD860 hand push thermoplastic road marking machine
paint tank double layer stainless steel,capacity of 100kg,equipped with inserted dismountable manumotive stirring device.
capacity of micor glass beads storing box 10kg
micro glass beads dispenser dispensing automatically, with speed governing shift device.
marking shoe made of plain cast iron material, scraper structure,standard configuration:150mm
grounded knife made of hard alloy,the range of thickness of road line can be adjusted from 1mm to 2.5mm with eccentric locking collar.
rubber tire aluminium alloy wheel hub,heat-resistance rubber,rear wheel equipped with localiser to make the machine walk along the straight line
heating method Liquefied petroleum gas
width of index line 50/80/100/120/150/180/200/230/250/300, you can choose different specification of marking hopper to fit for the situation of construction.
Size and net weight 1220×850×1040mm ,104kg
